Orthogonal beam

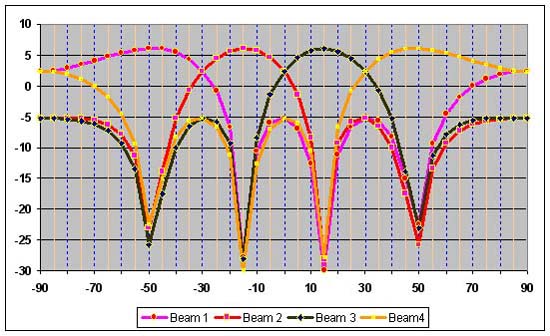

According to such intelligence, beam forming mechanism keeps forming beams or nulls. When one beam reaches its peak at certain point, all other beams are at trough. The following plot is a perfect demonstration of orthogonal beams.
